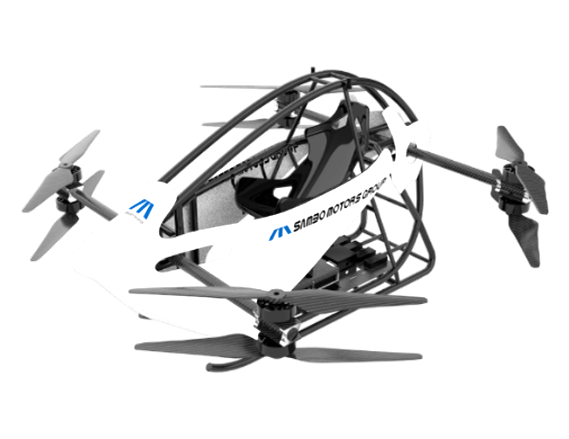

HAM III
Future Mobility utilizing Hydrogen + Battery Hybrid System
MAIN CHARACTERISTICS
-
99 km/h
Maximum Speed
-
Max 40min
Flight duration
-
40km
Flight distance
-
90kg
Maximum Take-off Weight
SPEC
Specification

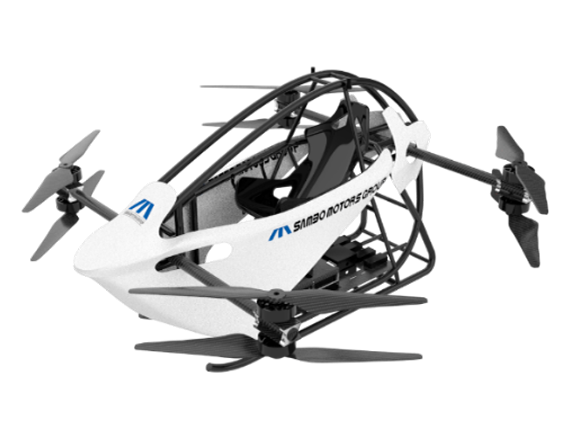

HAM III
| Model Name | HAM III |
|---|---|
| Model Type | Contra-rotating x 4 Type |
| Motor | BLDC |
| Size(Diagonal x diagonal x height) | 2,968 X 2,968 X 1,187 mm |
| Flight duration | Max 40 min |
| Flight distance | 40 km (Utilizing long-distance Telecommunications equipment ) |
| Maximum Take-off Weight (Hybrid system included) |
245 Kg |
| Maximum Boarding Weight | 90kg |
| GNSS | GPS + GLONASS + Galileo + Beidou |
HAM III-2
(Scheduled to exhibit at 2025 CES)
| Model Name | HAM III-2 |
|---|---|
| Model Type | Lift & Cruise |
| Motor | BLDC |
| Hydrogen Generator | 150 kWh |
| Size(Diagonal x diagonal x height) | 11,000 X 7,000 X 3,000 mm |
| Cruising speed | 180 km/h |
| Maximum speed | 250 km/h |
| Flight duration | 45 min |
| Flight distance | 95 km |
| Maximum Take-off Weight (Hybrid system included) |
800 Kg |
| Maximum Boarding Weight | 200 kg |
| GNSS | GPS + GLONASS + Galileo + Beidou |
TECHNOLOGY
Hybrid System (Hydrogen + Battery)
Future Mobility UAM
Ensure passenger safety by designing for impact safety and lightweight construction
Airframe stability validated by CAE analysis
Highly Efficient Energy utilization through Power Distribution System
Certificates
Show All
- Show All

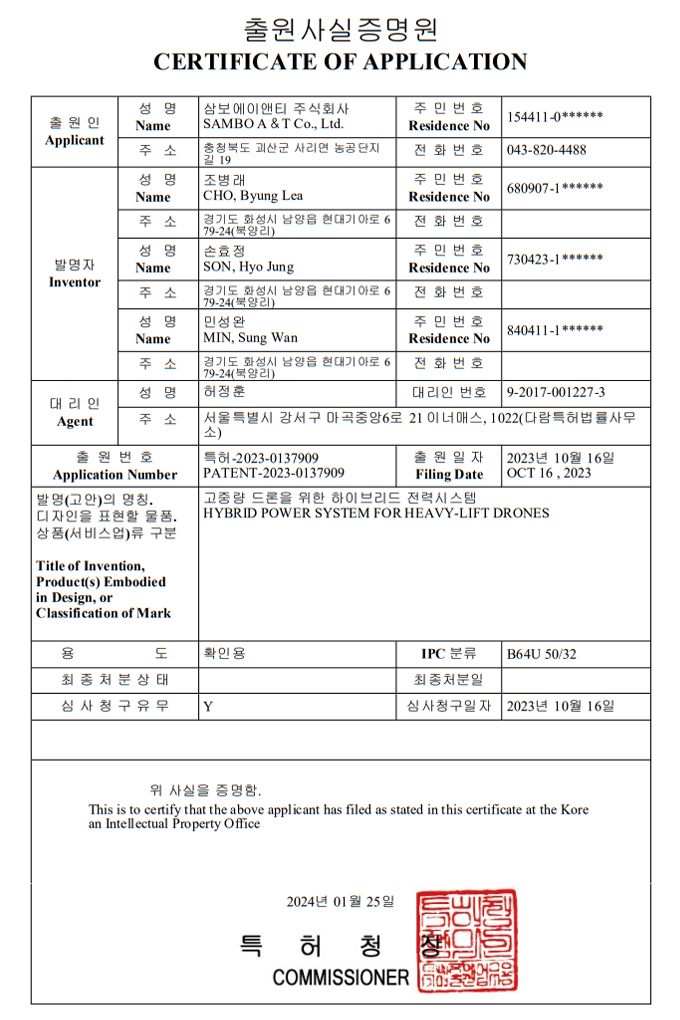

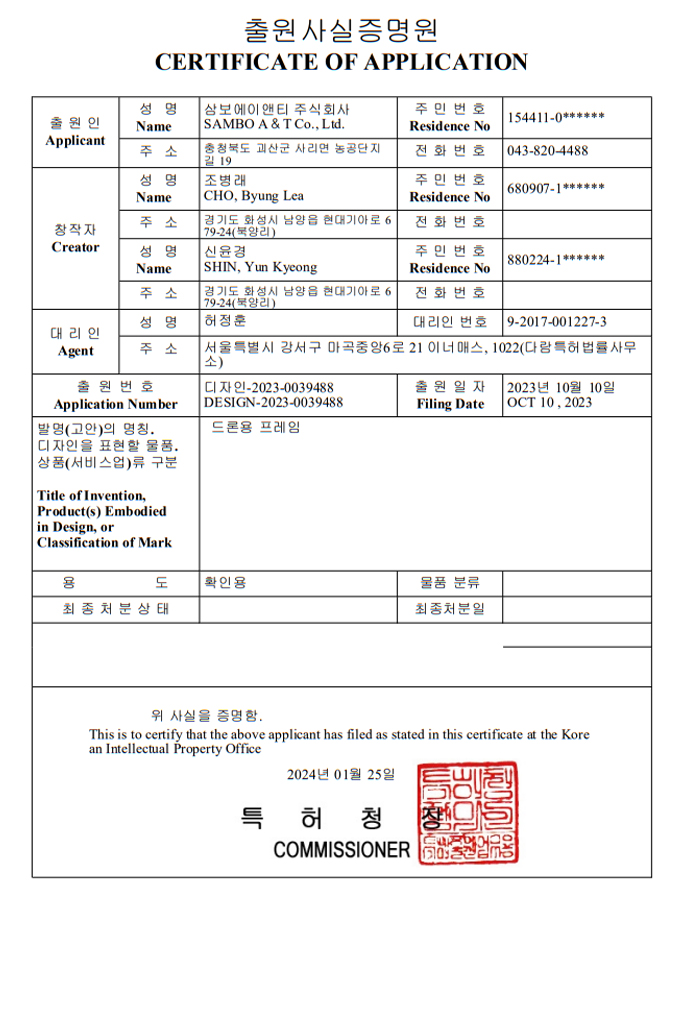

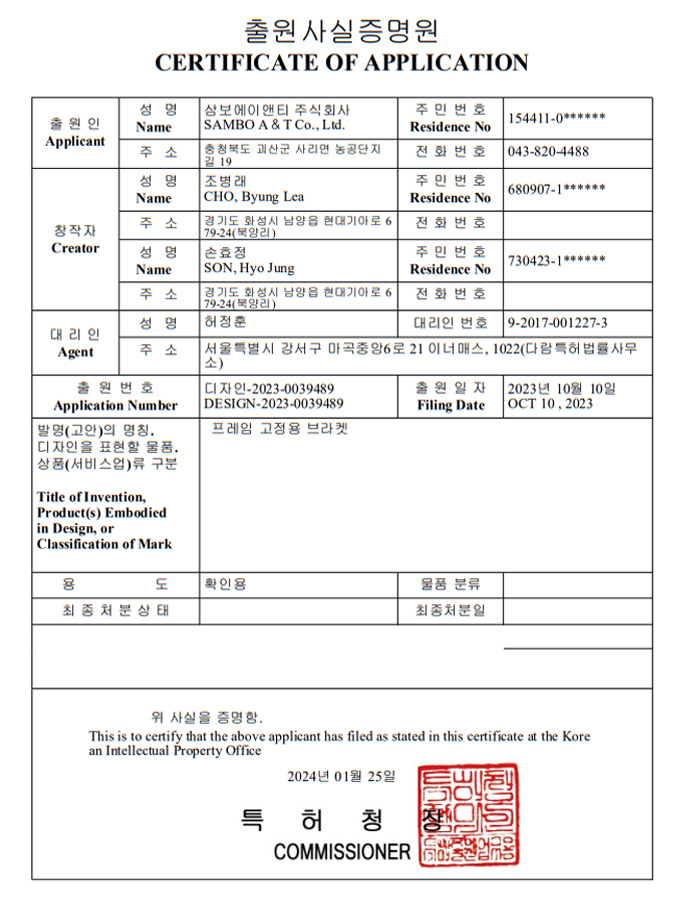

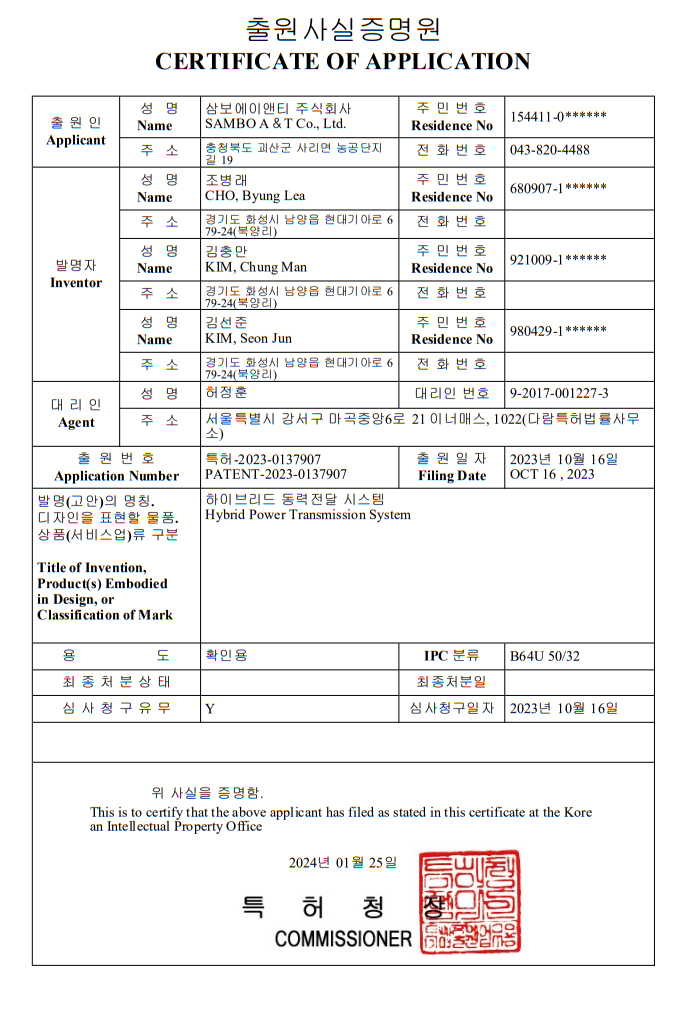

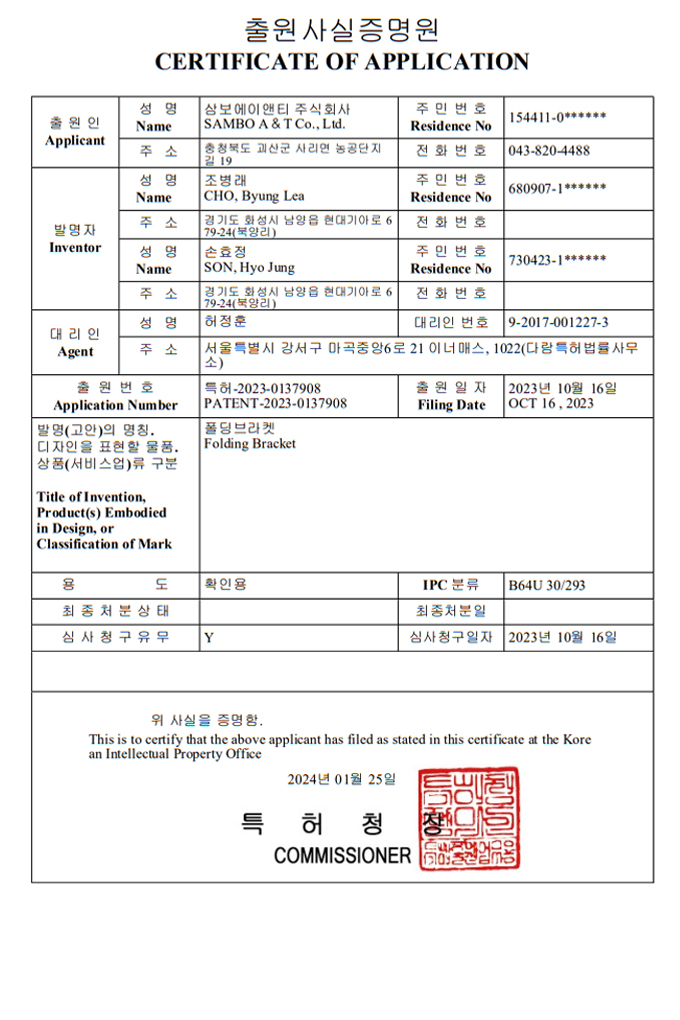

- Patent Status

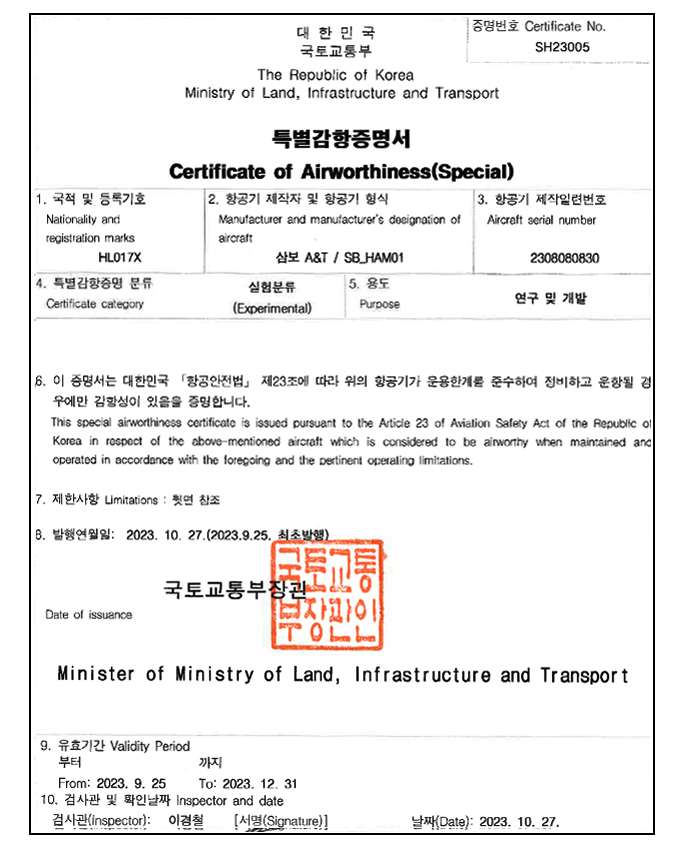

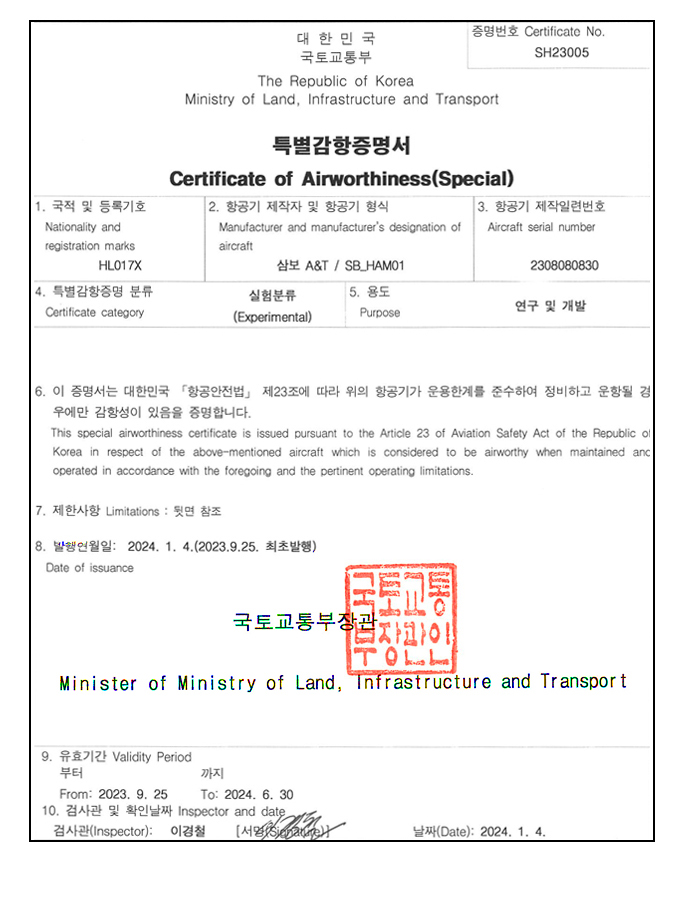

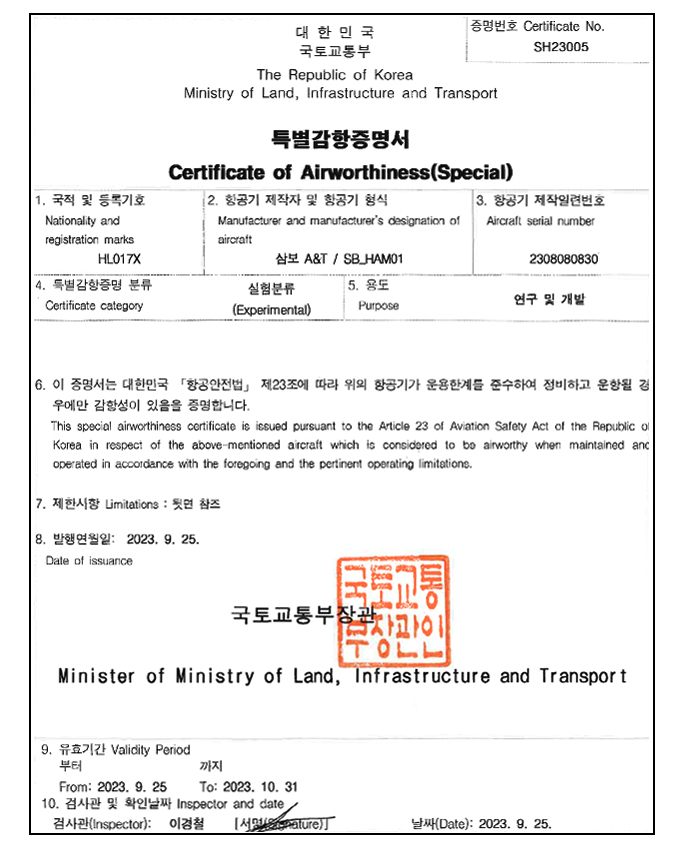

- Special Airworthiness Status
